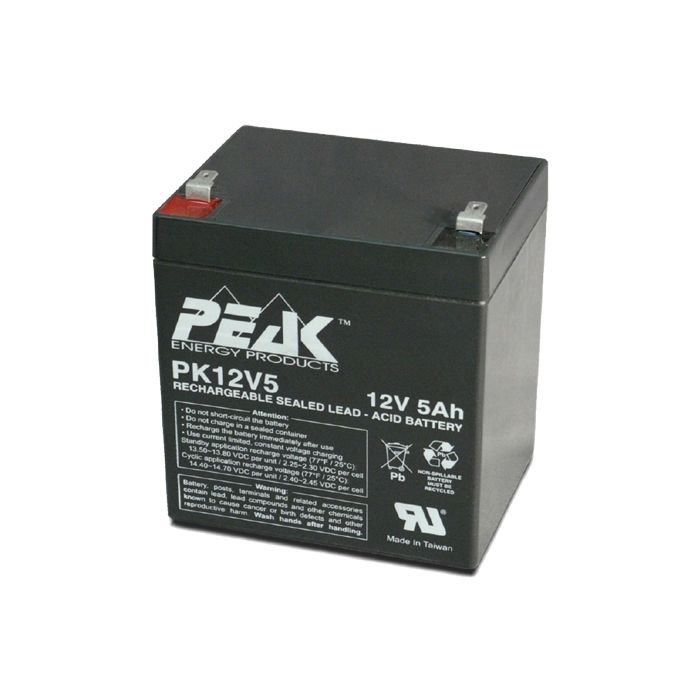

Peak Energy PK12V5F1 12V 5Ah Battery
Description / Peak Energy PK12V5F1 12V 5Ah Battery
| SPECIFICATIONS | |
| Model Description | Peak Energy PK12V5F1 rechargeable sealed lead acid (VRLA) battery |
| Nominal Voltage | 12 Volt |
| Capacity (@ 20hr-rate) | 5 Ah |
| Weight | 4.23 Lbs (1.92 kg) |
| Case Material | A.B.S. (UL94-HB) |
| Terminal | Faston Type 187 (F1) |
| Maximum Short Duration Discharge Current | 75 Ah (5 Seconds or Less); 50 Ah (10 Seconds or Less); 30 Ah (60 Seconds or Less) |
| Internal Resistance | 17.5 mOhm (Fully Charged Battery) (Approx) |
| Energy Density (@ 20hr-rate) | 1.55 watt-hours/cubic inch (94.3 watt-hours/litre) |
| Specific Energy (@ 20hr-rate) | 14.2 watt-hours/pound (31.3 watt-hours/kg) |
| Operating Temperature Range | Discharge: -4°F (-20°C) ~ 122°F (50°C); Recharge: 32°F (0°C) ~ 104°F (40°C); Storage:-4°F (-20°C) ~ 104°F (40°C) |
| Self Discharge Rate | About 3 %/Month @ 68 ~ 77°F (20 ~ 25°C) |
DIMENSIONS | |
| Length | 3.54 in. (90 mm) |
| Width | 2.76 in. (70 mm) |
| Case Height | 3.98 in. (101 mm) |
| Terminal Height | 4.25 in. (108mm) |
   | |
CHARTS | |
 | |
Discharge Time | Discharge Amperes | Capacity in Ah’s | Final Voltage | Discharge C-Rate |
20.0 hr | 0.25 | 5.00 | 10.50 | 0.05 |
9.2 hr | 0.50 | 4.62 | 10.50 | 0.10 |
5.0 hr | 0.85 | 4.24 | 10.29 | 0.17 |
4.1 hr | 1.00 | 4.07 | 10.20 | 0.20 |
2.1 hr | 1.75 | 3.72 | 9.94 | 0.35 |
64.0 min | 3.0 | 3.20 | 9.54 | 0.6 |
32.5 min | 5.0 | 2.70 | 9.00 | 1.0 |
7.2 min | 15 | 1.80 | 6.00 | 3.0 |
Recharge Method: Connect battery to a Current Limited, Constant Voltage Source. | ||||
Limit the initial recharge current to 1.25 Ah or less. To promote satisfactory performance in Cyclic applications, a minimum recharge current of 500 mA is recommended. Employ Charge Voltage Temperature Compensation when battery temperature is less than 50°F (10°C) 0r greater than 86°F (30°C), Use the Recommended voltage and normalize to 77°F (25°C). The use of compensation through the whole temperature range is not generally necessary, but doing so may optimize service life. If the Recommended recharge voltage is used, no Temperature Compensation is required within the range of 50 ~ 86°F (10 ~ 30°C) | Cyclic Application Recharge Voltage (77°F / 25°C) | |||
Minimum | Recommended | Maximum |
Volts D.C. Per Cell | |
14.40 | 14.55 | 14.70 | ||
2.40 | 2.425 | 2.45 | ||
Temperature Coefficient: -2.8mV/°F/Cell (-5mV/°C/Cell) | ||||
Standby Application Recharge Voltage (77°F/25°C) | ||||
Minimum | Recommended | Maximum |
Volts D.C. Per Cell | |
13.50 | 13.65 | 13.80 | ||
2.25 | 2.275 | 2.30 | ||
Temperature Coefficient: -1.7mV/°F/Cell (-3mV/°C/Cell) | ||||
