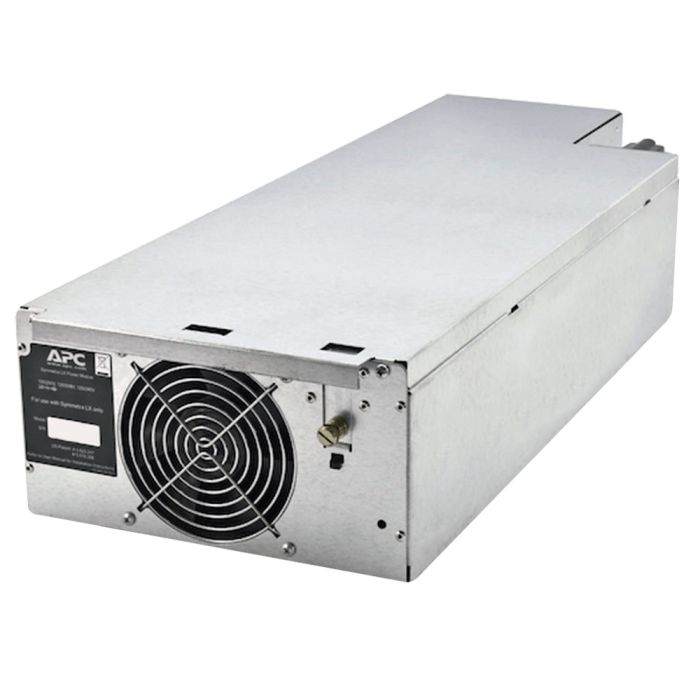

APC Symmetra LX 4kVA Power Module SYPM4KP - Refurbished
Description / APC Symmetra LX 4kVA Power Module SYPM4KP - Refurbished
Model: SYPM4KP
Model Description: APC Symmetra LX 4KVA Power Module
Compatibility: Select APC Symmetra LX UPSs (check the Part Number on your power module to make sure you get the right one)
Condition: Refurbished Power Module (1 Year Warranty included, additional warranty available)
Includes: (1) SYPM4KP Power Module
Warranty: 1 year full replacement warranty included, additional warranty is available
Manufacturer: UPS Battery Center Ltd.
The SYPM4KP power module is fully tested and refurbished. Installation is quick easny, plug and play. Remove the old power module, install the new one. The system will auto recognize the SYPM4KP and automatically add the additional load capacity. A disposal tag is included in the box to send the old power module for recycling.
APC Symmetra LX 4KVA SYPM4KP Power Module specifications:
|
Output power capacity |
3200 Watts / 4000 VA |
|
Nominal output voltage |
100V,120V,200V,208V |
| Output Voltage Note | Configurable for 120/208 or 120/240 output voltage |
| Output Voltage Distortion |
Less than 5% at full load
|
| Output Frequency (sync to mains) | 47 - 63 Hz |
| Crest Factor | up to 5 : 1 |
| Waveform Type | Sine wave |
| Output Connections | (1) Hard Wire 4-wire (2PH + N +G) |
Input:
|
Nominal input voltage |
200V, 208V |
|
Input frequency |
45 - 65 Hz (auto sensing)
|
| Input voltage range for main operations | 155 - 276V |
| Other Input Voltages | 240V |
Physical:
|
Maximum height |
5.90 inches (150 mm) |
|
Maximum width |
9.84 inches (250 mm) |
|
Maximum depth |
23.23 inches (590 mm) |
|
Net weight |
33.00 lbs. (15.00 kg)
|
|
Shipping Weight |
40.00 lbs. (18.18 kg) |
