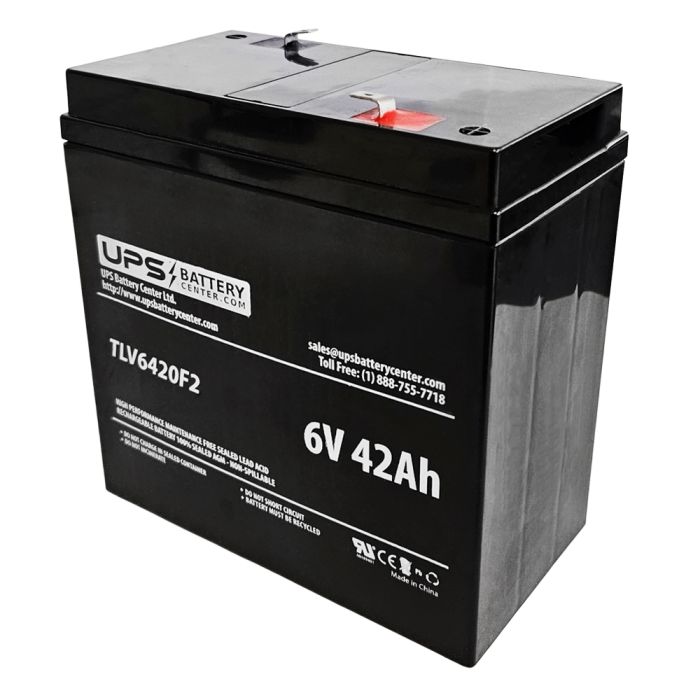

6V 42Ah Sealed Lead Acid Battery with F2 Terminals

Features of the TLV6420F2 - 6V 42Ah Sealed Lead Acid Battery with F2 Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free
• Low self discharge
• Non-Spillable

Applications

• UPS Standby Power Applications
• Medical devices
• Military Power Equipment
• Emergency Lighting
• Fire Detection and Security Alarm Devices

Product Specifications

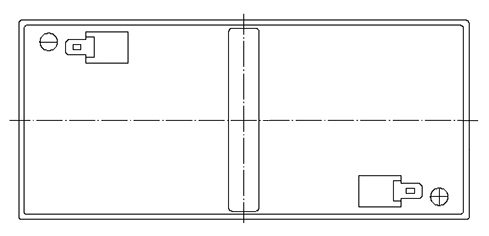

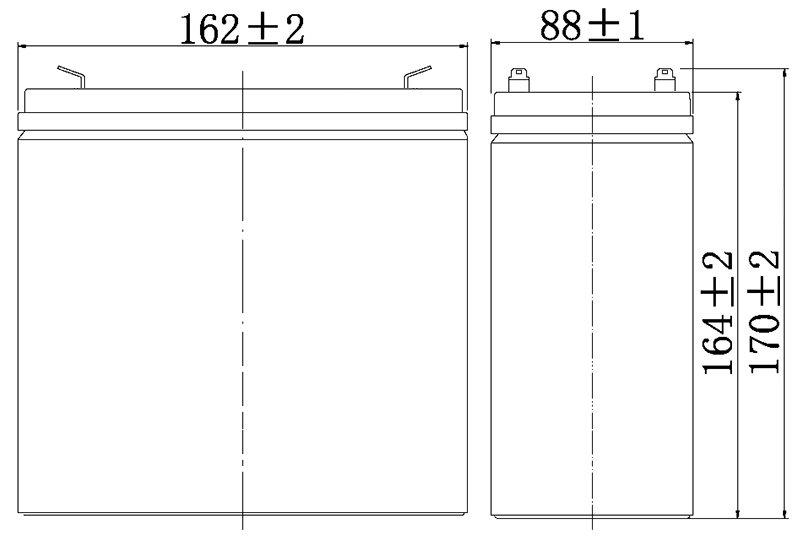

Dimensions
Terminal Type: F2
Length (mm/inch): 162/6.38
Width (mm/inch): 88/3.46
Height (mm/inch): 164/6.46
Total Height (mm/inch): 170/6.69
Approx. Weight (kg/lbs): 6.2/13.7

Performance Characteristics

Nominal Voltage: 6V

Nominal Capacity 77ºF (25ºC)
10HR (5.40V): 42Ah
5HR (5.25V): 36.7Ah
1HR (4.80V): 26Ah

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 4.2mΩ

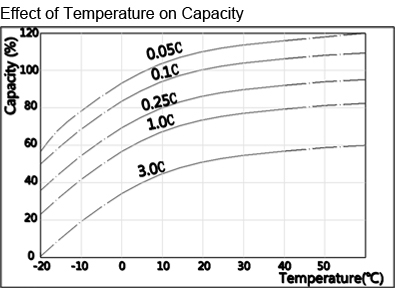

Capacity Affected by Temperature (10 Hour)
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 65%

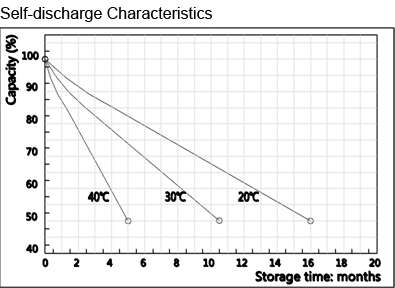

Self-Discharge (25°C)
3 Month: Remaining Capacity: 91%
6 Month: Remaining Capacity: 82%
12 Month: Remaining Capacity: 65%

Nominal Operating Temperature:
25°C±3°C (77°F±5°F)

Operating Temperature Range
Discharge: -15°C～50°C(5°F～122°F)
Charge: -10°C～50°C(14°F～122°F)
Storage: -20°C～50°C(-4°F～122°F)

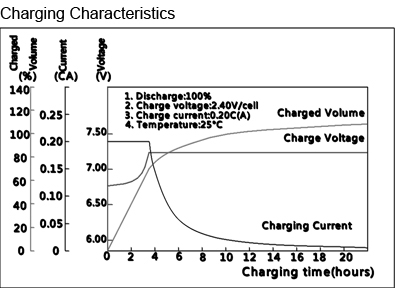

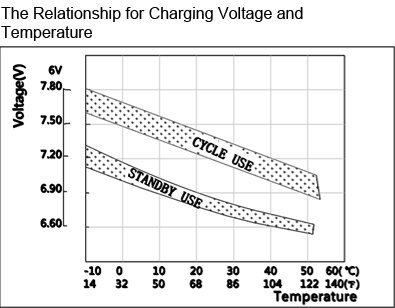

Float Charging Voltage (25°C):
6.75 to 6.90V Temperature compensation: -9mV/°C

Cyclic Charging Voltage (25°C):
7.25 to 7.45V Temperature compensation: -15mV/°C

Maximum Charging Current: 12.6A

Maximum Discharge Current: 180A (5 sec)

Terminal Material: Copper

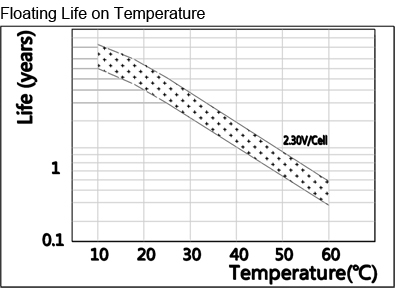

Designed Floating Life: 12 Years

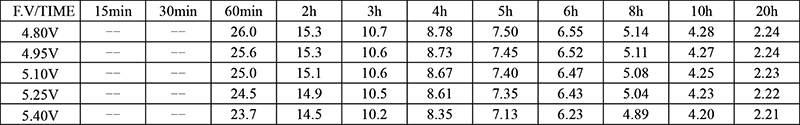

Constant Current Discharge Characteristics

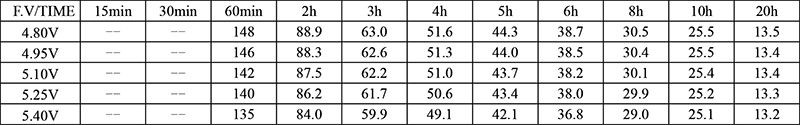

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.
