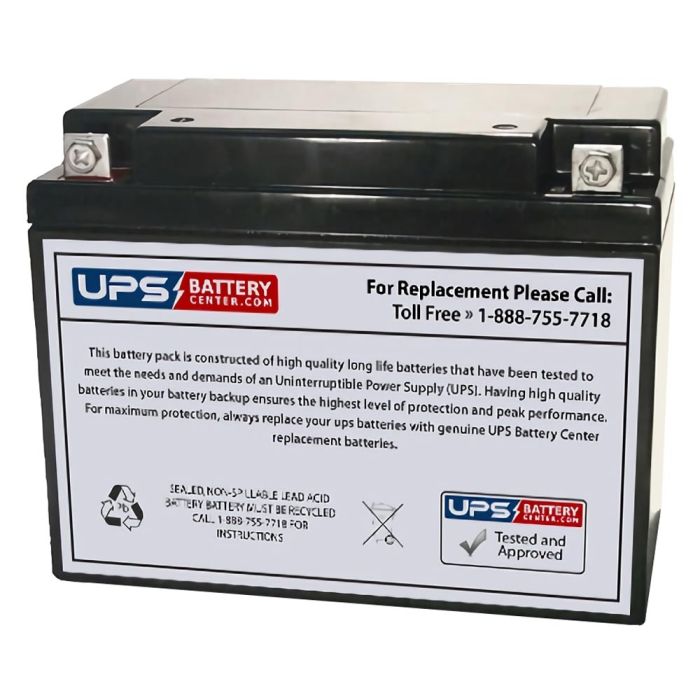

6V 20Ah Sealed Lead Acid Battery with F3 Nut & Bolt Terminals

Features of the TLV6200 - 6V 20Ah Sealed Lead Acid Battery with F3 Nut & Bolt Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density

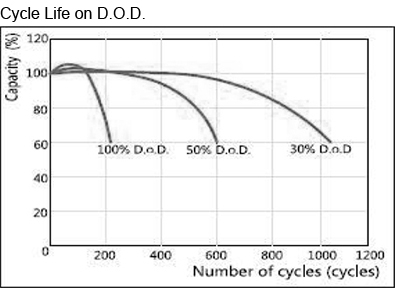

• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• Fire panels
• Alarm Systems
• Emergency lighting systems
• UPS Systems
• Military Power Equipment

Product Specifications

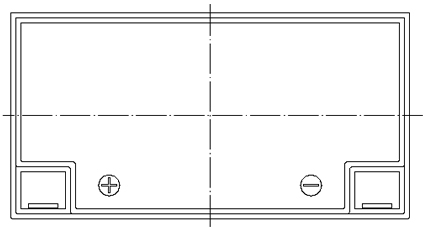

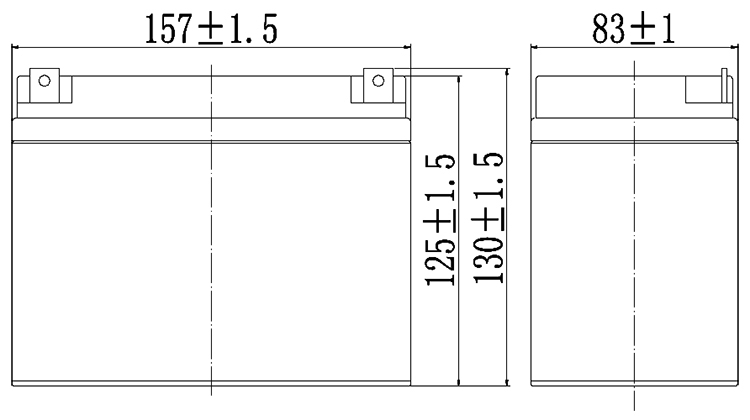

Dimensions
Terminal Type: F3 Nut & Bolt
Length (mm/inch): 157/6.18
Width (mm/inch): 83/3.27
Height (mm/inch): 125/4.92
Total Height (mm/inch): 130/5.12
Approx. Weight (kg/lbs): 3.1/6.84

Performance Characteristics

Nominal Voltage: 6V

Nominal Capacity 77ºF (25ºC)
20HR (5.25V): 20Ah
10HR (5.25V): 18.6Ah
1HR (4.80V): 13Ah

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 8mΩ

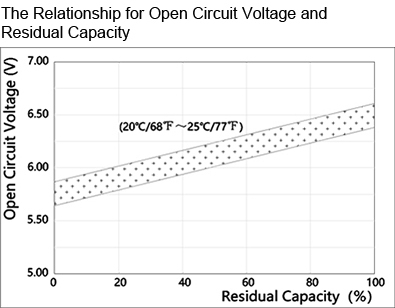

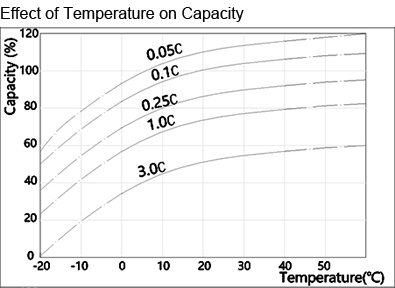

Capacity Affected by Temperature (20 Hour)
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 65%

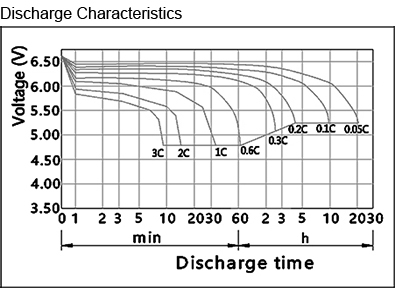

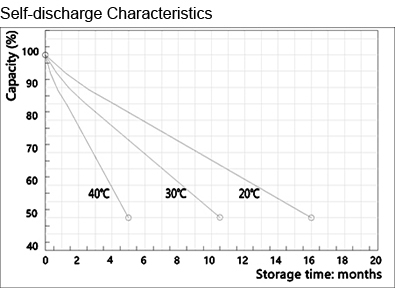

Self-Discharge (25°C)
3 Month: Remaining Capacity: 91%
6 Month: Remaining Capacity: 82%
12 Month: Remaining Capacity: 65%

Nominal Operating Temperature:
25°C±3°C (77°F±5°F)

Operating Temperature Range
Discharge: -15°C～50°C(5°F～122°F)
Charge: -10°C～50°C(14°F～122°F)
Storage: -20°C～50°C(-4°F～122°F)

Float Charging Voltage (25°C):
6.80 to 6.90V Temperature compensation: -9mV/°C

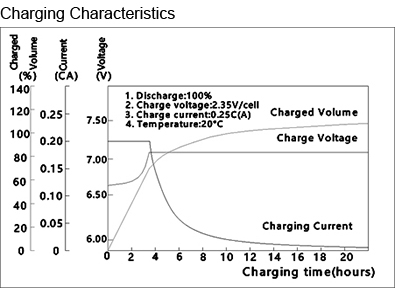

Cyclic Charging Voltage (25°C):
7.25 to 7.45V Temperature compensation: -15mV/°C

Maximum Charging Current: 6A

Maximum Discharge Current: 300A (5 sec)

Terminal Material: Copper

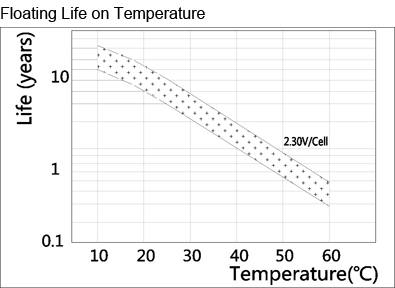

Designed Floating Life: 10 Years

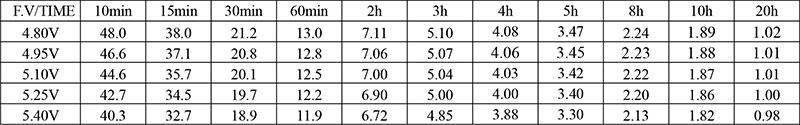

Constant Current Discharge Characteristics

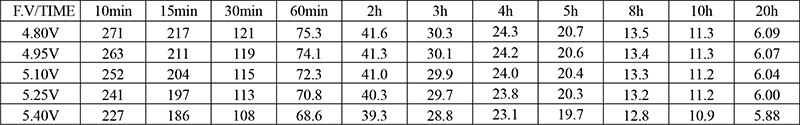

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.
