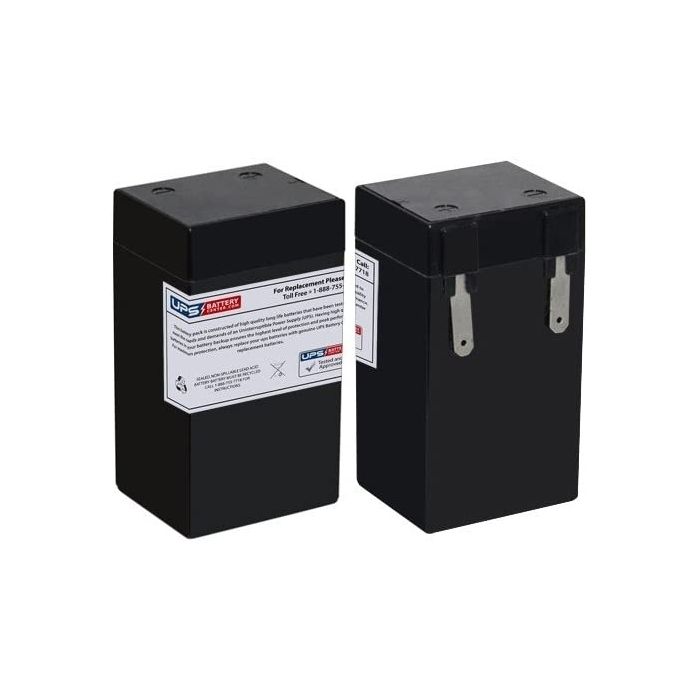

6V 2.3Ah Sealed Lead Acid Battery with Tab Terminals

Features of the TLV623 - 6V 2.3Ah Sealed Lead Acid Battery with Tab Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Recognized by UL & CE
• ABS Container

Applications

• Medical devices
• Spotlights, flashlights
• Mining equipment
• Hospitals & Medical Applications

Product Specifications

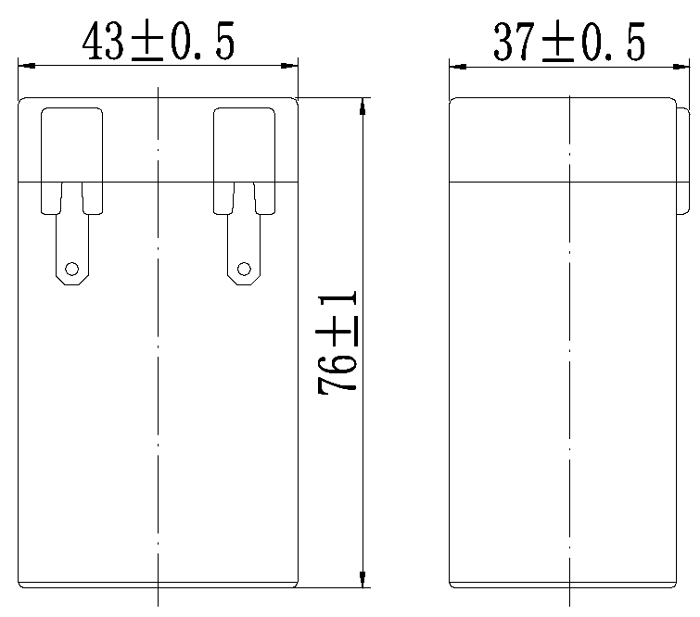

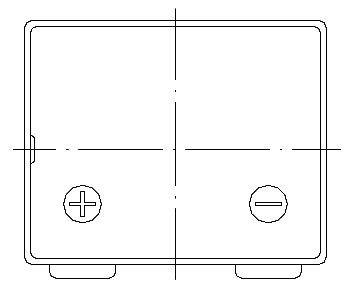

Dimensions

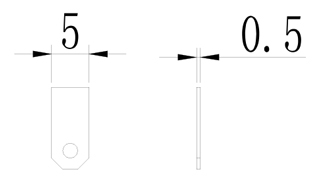

Terminal Type: Tab / 5mm
Length (mm/inch): 43/1.69
Width (mm/inch): 37/1.46
Height (mm/inch): 76/2.99
Total Height (mm/inch): 76/2.99
Approx. Weight (kg/lbs): 0.33/0.73

Performance Characteristics

Nominal Voltage: 6V

Nominal Capacity 77ºF (25ºC)
20HR (5.25V): 2Ah
10HR (5.25V): 1.86Ah
1HR (4.80V): 1.3Ah

Internal Resistance
Fully Charged 77ºF(25ºC): Approx. 25mΩ

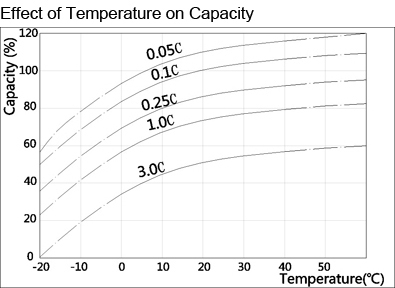

Capacity Affected by Temperature (20 Hour)
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 65%

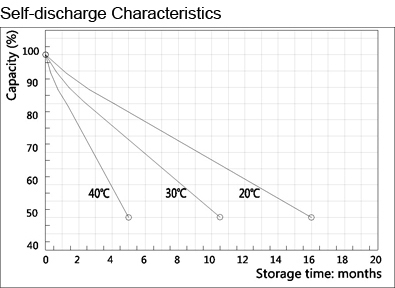

Self-Discharge (25°C)
3 Month: Remaining Capacity: 91%
6 Month: Remaining Capacity: 82%
12 Month: Remaining Capacity: 65%

Nominal Operating Temperature:
25°C±3°C (77°F±5°F)

Operating Temperature Range
Discharge: -15°C～50°C(5°F～122°F)
Charge: -10°C～50°C(14°F～122°F)
Storage: -20°C～50°C(-4°F～122°F)

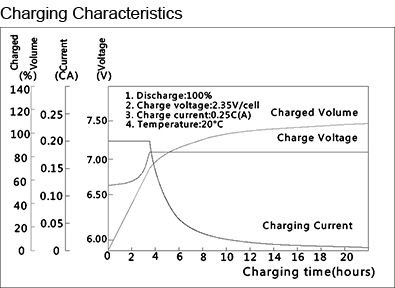

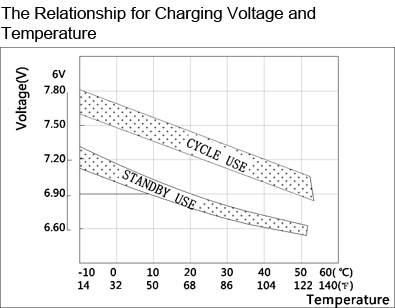

Float Charging Voltage (25°C):
6.80 to 6.90V Temperature compensation: -9mV/°C

Cyclic Charging Voltage (25°C):
7.25 to 7.45V Temperature compensation: -15mV/°C

Maximum Charging Current: 0.6A

Maximum Discharge Current: 5A (5 sec)

Terminal Material: Copper

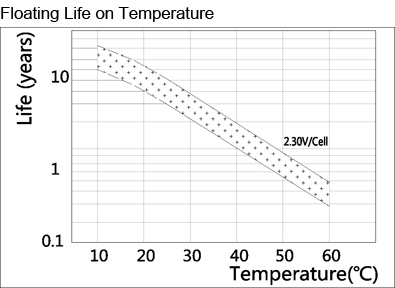

Designed Floating Life: 3-5 Years

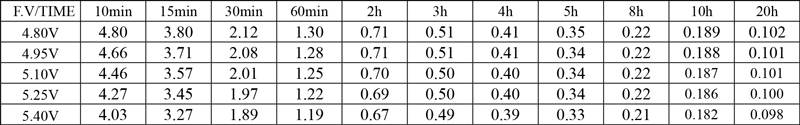

Constant Current Discharge Characteristics

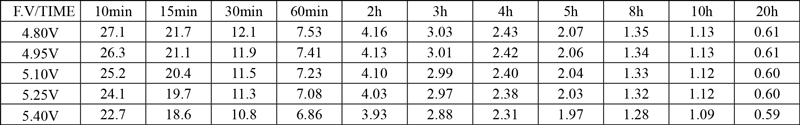

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.
