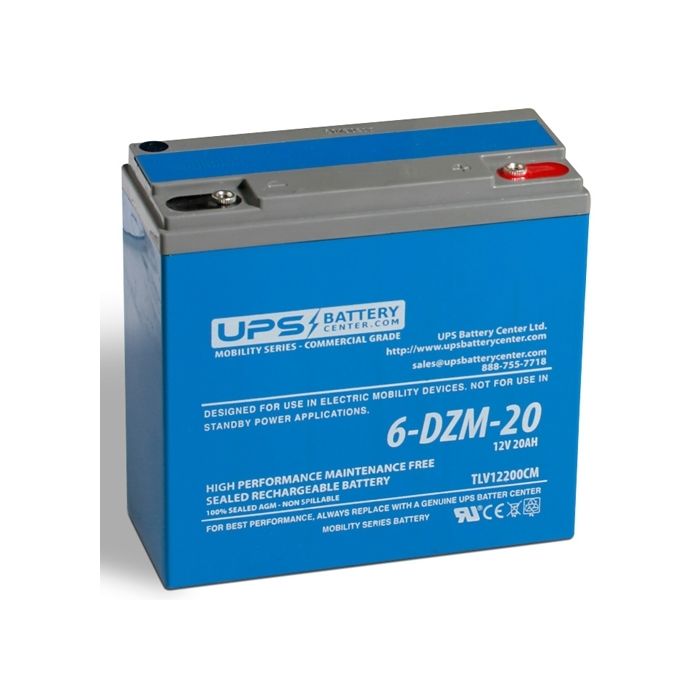

6-DZM-20 12V 20Ah Deep Cycle Mobility Battery

Features of the 6-DZM-20 12V 20Ah Deep Cycle Mobility Battery (TLV12200CM)

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Common applications for the 6-DZM-20

• e-bike / ebike
• electric scooters / electric golf carts
• eletric wheelchair
• portable flash packs / Booster packs
• mobile medical carts

Product Specifications

Dimensions

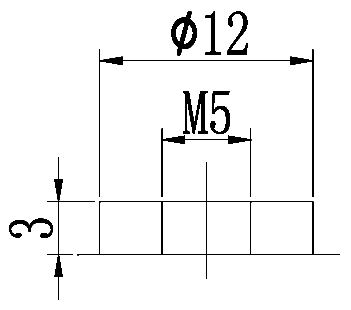

Terminal Type: M5 - Insert Terminals - Hardware provided
Length (mm/inch): 181mm / 7.13"
Width (mm/inch): 77mm / 3.03"
Height (mm/inch): 167mm / 6.57"
Total Height (mm/inch): 167mm / 6.57"
Approx. Weight (kg/lbs): 7kg / 15.43"

Performance Characteristics of the 6-DZM-20

Nominal Voltage: 12V

Open Circuit Voltage (V/Block): 13.1V - 13.45V

Number of Cells (Per Block): 6 Cells

Rated Capacity (Ah, 25°C):
2h rate (to 1.75V/Cell): 20Ah
3h rate (to 1.75V/Cell): 22Ah
5h rate (to 1.80V/Cell): 24Ah
10h rate (to 1.80V/Cell): 26Ah
20h rate (to 1.85V/Cell): 28Ah

Container Material:
Enhanced ABS

Charge Voltage:
Float (V/Block): 13.50V - 13.80V
Cycle(V/Block): 14.60V - 14.80V

Maximum Discharge Current (A):
150A (5s)

Maximum Charge Current (A):
2.7A

 Working Temperature (°C):
Operation (Maximum): -20°C to 50°C
Operation (Recommended): 20°C to 30°C

Storage Temperature (°C):
-20°C to 50°C

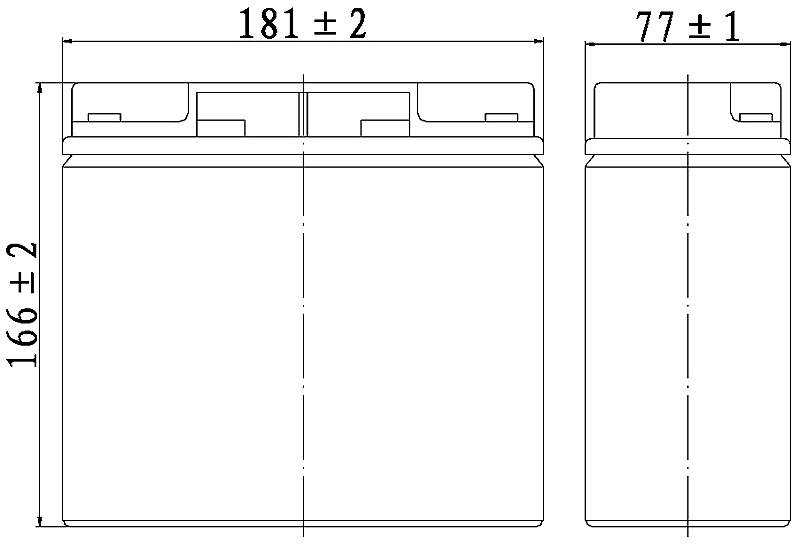

Battery Diagram:

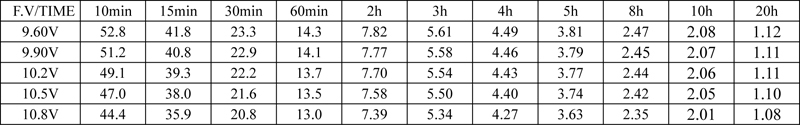

Constant Current Discharge Characteristics

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.

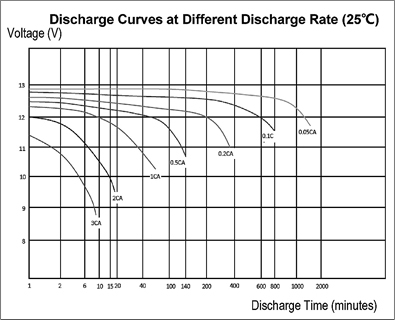

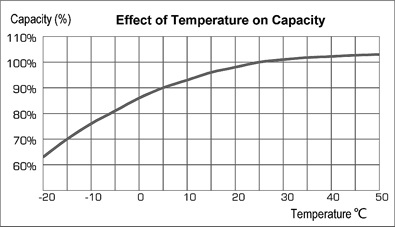

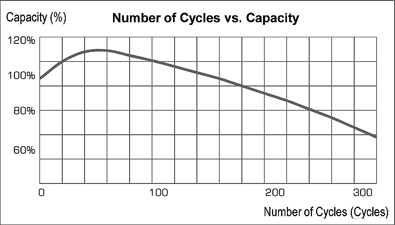

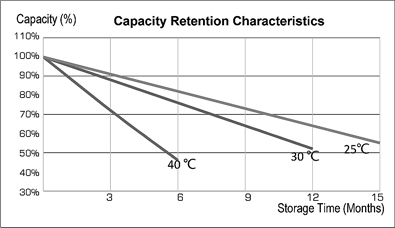

Battery Diagrams:

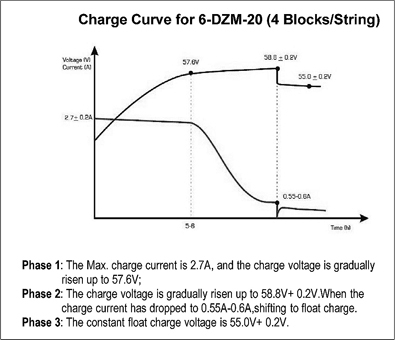

Recommended Setting Parameters
