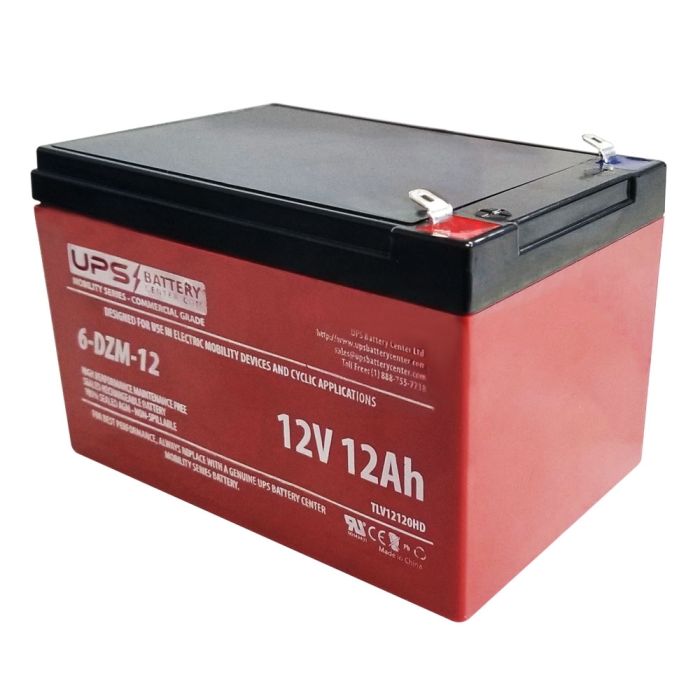

6-DZM-12 12V 12Ah Deep Cycle Mobility Battery with F2 - 0.250" Terminals

Features of the 6-DZM-12 12V 12Ah F2 Deep Cycle Mobility Battery

• Safe for all transport methods, complies with IATA/ICAO Special Provision A67
• Can be mounted in any orientation
• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• e-bike / ebike
• electric scooters, electric cars, quads
• electric skateboard, electric children's scooter
• children's ride on toys
• mobile medical carts

Product Specifications

Dimensions

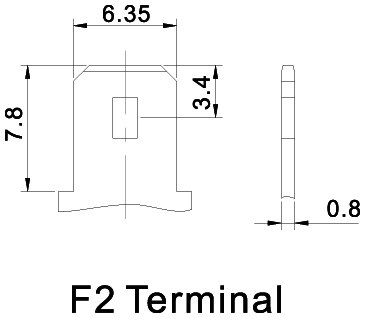

Terminal Type: F2 - 0.250"
Length (mm/inch): 151mm / 5.94"
Width (mm/inch): 98mm / 3.85"
Height (mm/inch): 98mm / 3.85"
Total Height (mm/inch): 104mm / 4.09"
Approx. Weight (kg/lbs): 4.1 kg / 9.03 lbs.

Performance Characteristics

Nominal Voltage: 12V

Nominal Capacity at 25°C (77°F) - 2hr rate: 12Ah
3hr rate (to 1.75V/Cell) - 13Ah
5hr rate (to 1.80V/Cell) - 14Ah
10hr rate (to 1.80V/Cell) - 15Ah
20hr rate (to 1.85V/Cell) - 16Ah

Internal Resistance:
Fully Charged Battery 25°C: ≤8mΩ

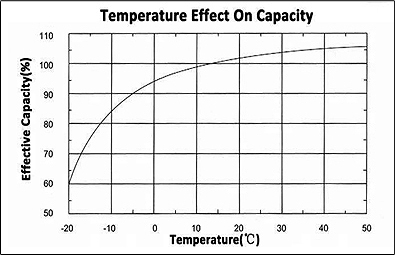

Capacity Affected Temperature (10 Hour):
40°C (104°F): 102%
25°C (77°F): 100%
0°C (32°F): 85%
15 (5°F): 65%

Self-Discharge 25°C (77°F) Capacity:
After 3 Months Storage: 90%
After 6 Months Storage: 80%
After 12 Months Storage: 62%

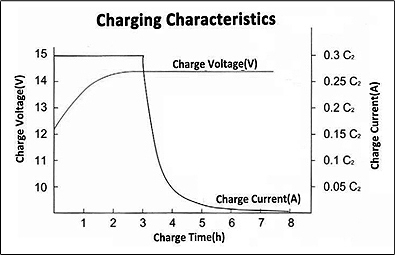

Charge (Constant Voltage) 25°C (77°F):
Float: Initial Charging Current less than 4.35A Voltage 13.5-13.8V
Cycle: Initial Charging Current less than 4.35A Voltage 14.6-14.8V

Maximum Discharge Current: 100A (5s)
Maximum Charge Current: 2A

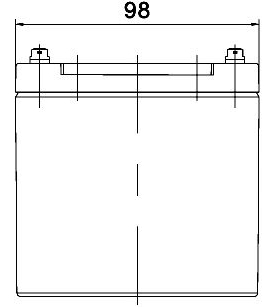

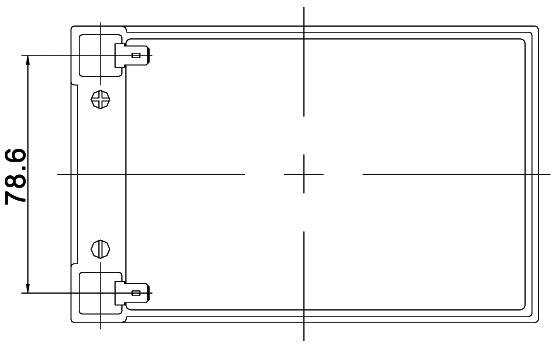

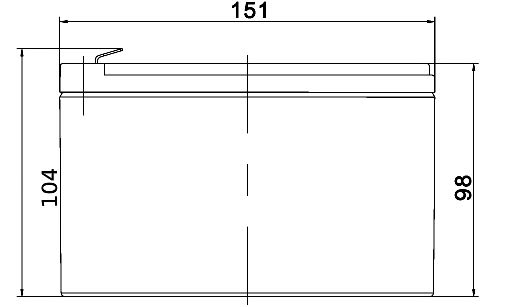

6-DZM-12 - F2 - Battery Diagram:

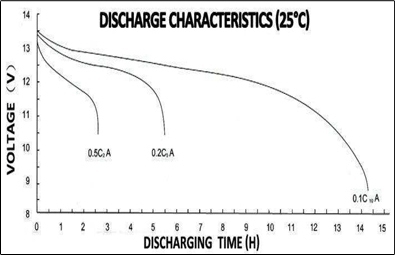

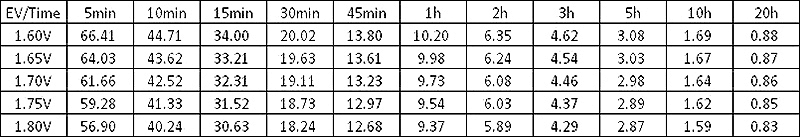

Constant Current Discharge Characteristics

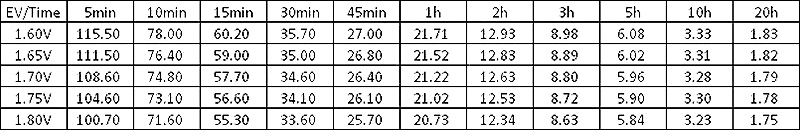

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the minimum values.

Battery Construction

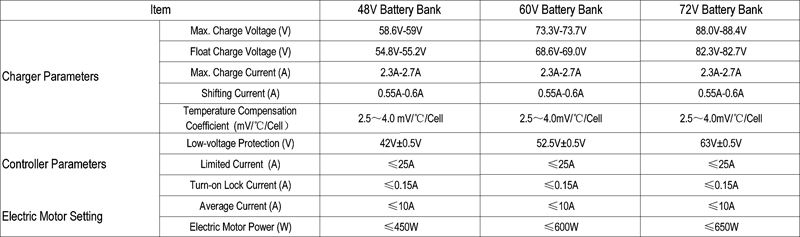

Recommended Setting Parameters
