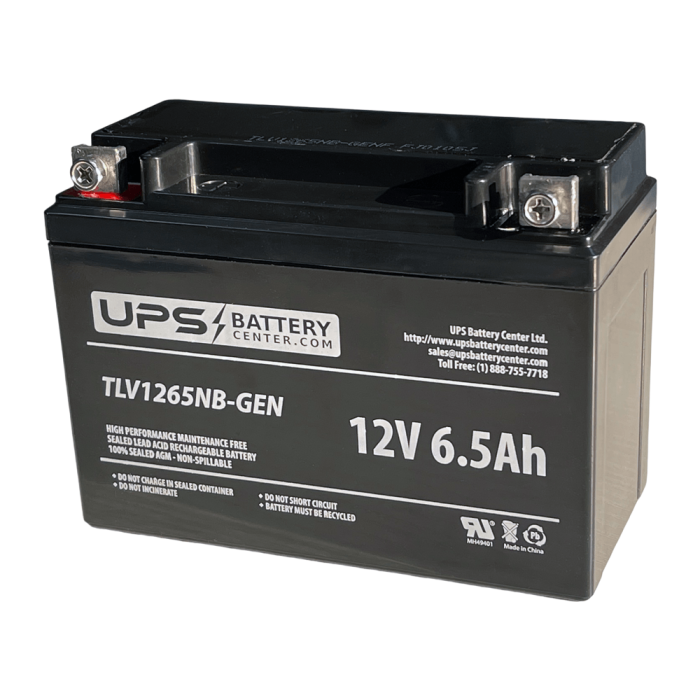

12V 6.5Ah Generator Sealed Lead Acid Battery with NB Terminals

TLV1265NB-GEN - 12V 6.5Ah Sealed Lead Acid Battery for generators with Nut & Bolt terminals

• Commonly used in generators, portable generators
• Absorbent glass mat technology (AGM)
• Maintenance-free / Non-Spillable
• Highly efficient
• Low self-discharge
• Long cyclic life

Product Specifications

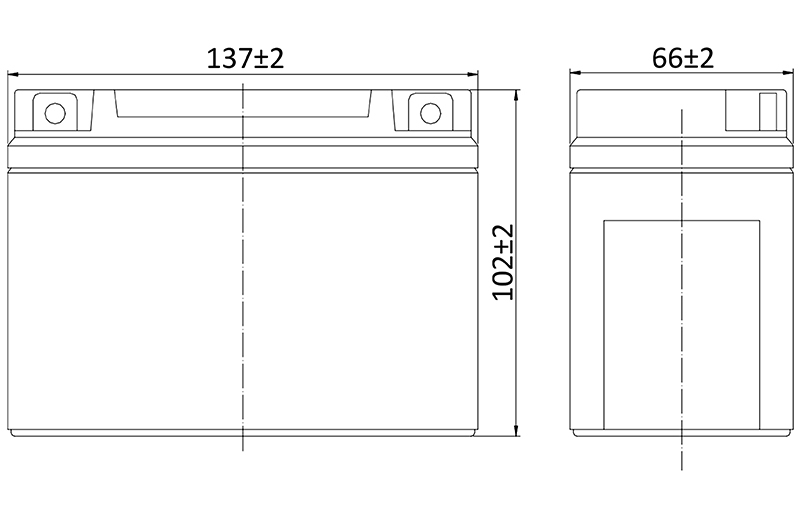

Dimensions

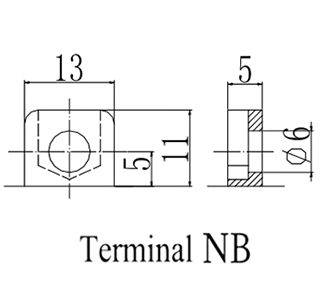

Terminal Type: Nut & Bolt (hardware included)
Length (mm/inch): 137mm / 5.39"
Width (mm/inch): 66mm / 2.60"
Height (mm/inch): 102mm / 4.02"
Approx. Weight (kg/lbs): 2kg / 4.41lbs

Performance Characteristics

Nominal Voltage: 12V
Nominal Capacity 77ºF (25ºC): 6.5Ah

Operating Temperature Range: -20°C~50°C(-4°F~122°F)

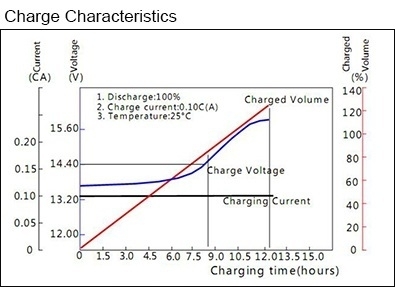

Standard Charging Method (25°C):
Current: 0.65A
Time: 5~13h

Quick Charging Method (25°C):
Current: 3.25A
Time: 1-2h

Terminal Material: Lead
Container Material: ABS
