Description / 12V 4.5Ah Sealed Lead Acid Battery with F1 Terminals

Features of the TLV1245A - 12V 4.5Ah Rechargeable Sealed Lead Acid Battery with F1 Terminals

• Absorbent Glass Mat (AGM) technology for premium performance
• Maintenance Free & Non-Spillable
• Operation in any orientation (upright, side, & end mounting recommended)
• Approved for transport by air. D.O.T., I.A.T.A., F.A.A., C.A.B.
• Classified as Non Hazardous, Non Dangerous Goods for Transportation
• Long service life in float or cyclic applications
• 5 Year Design Life at 25°C
• U.L. recognized under file number MH49401

Common Use & Applications:

• Alarm Security systems / Alarm Panels (for longer run time than original 4, 5, or 7Ah batteries)
• Small grass/lawn trimmers
• Fish finders (to replace the original smaller capacity batteries such as the 12V 7.2Ah, or 9Ah to provide longer run time)
• Small ebike and children's ride on toys

Product Specifications
Terminal:	F1
Length	195 ± 2mm (7.68inch)
Width	47 ± 1mm (1.85inch)
Height	70 ± 1mm (2.76inch)
Total Height	76 ± 1mm (2.99inch)
Approx. Weight (kg / lbs)	1.58kg (3.48lbs) ± 5%

Performance Characteristics
Nominal Voltage	12V

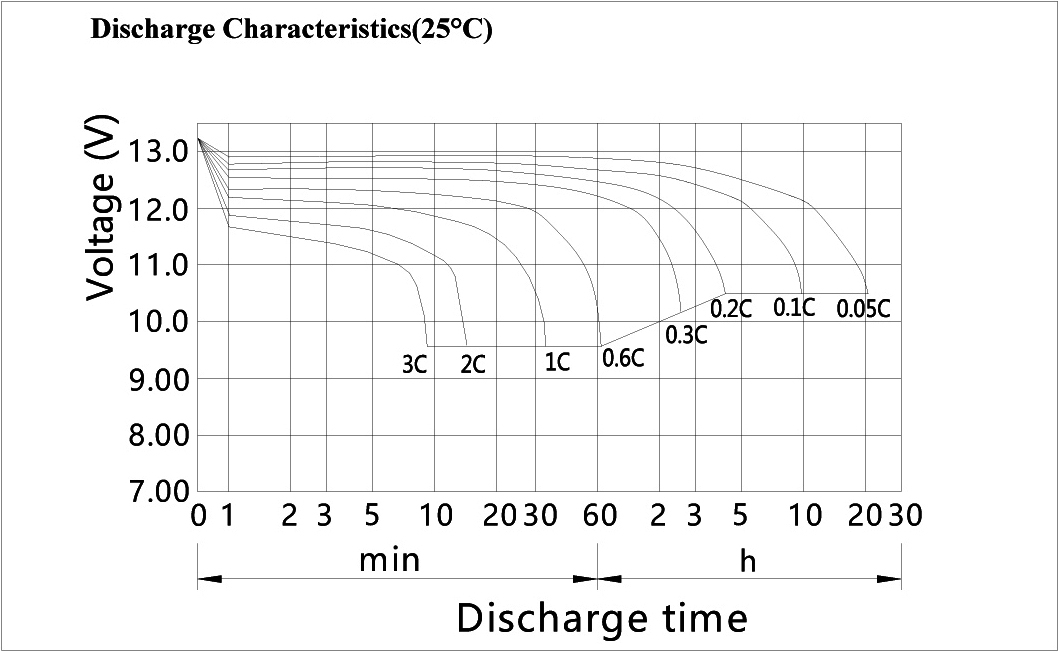

Capacity (25°C)
20HR (10.5V)	4.5Ah
10HR (10.5V)	4.2Ah
1 HR (9.60V)	2.93Ah

Internal Resistance (Fully charged, 25°C)	Approx. 40Ohms

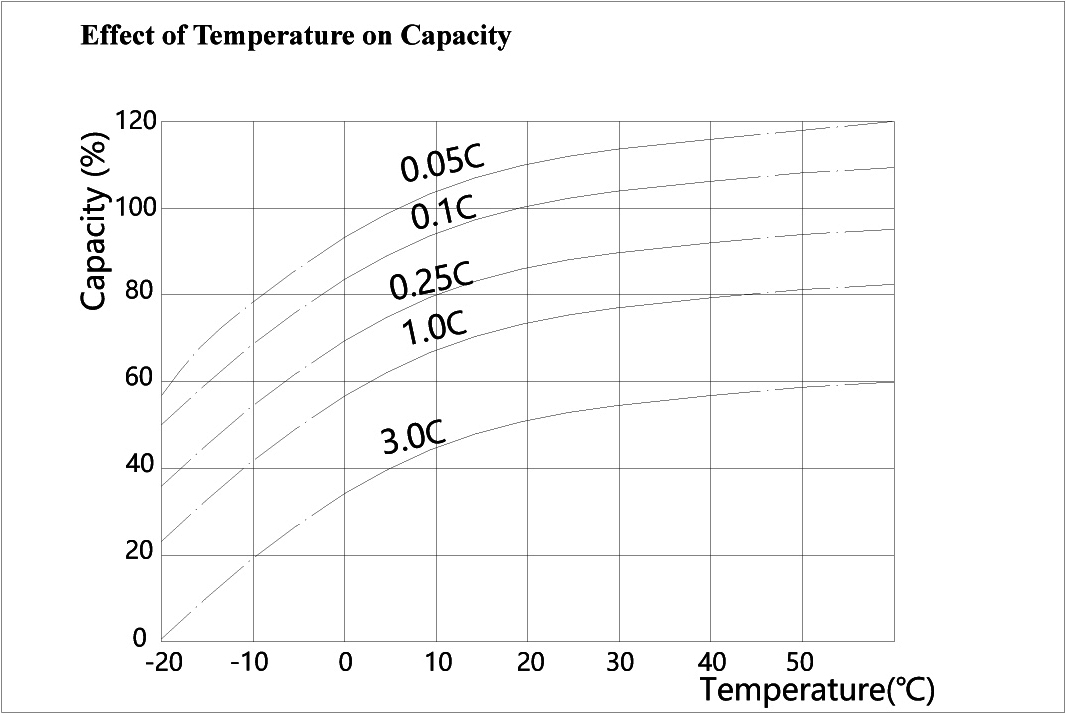

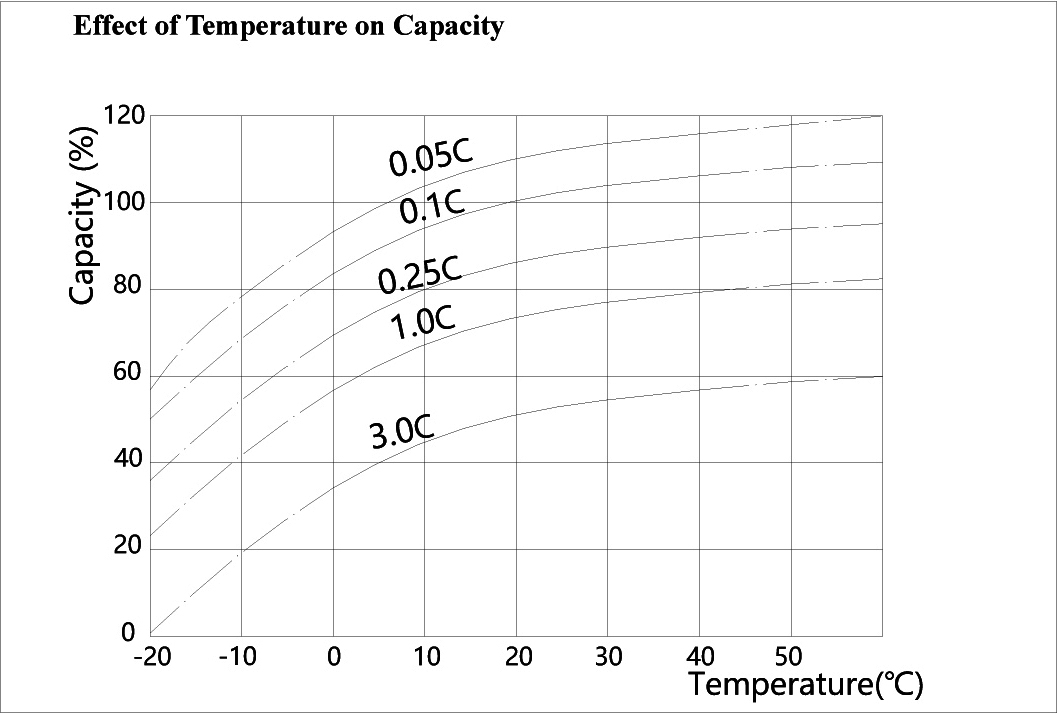

Capacity affected by temperature (20HR)
40°C	102%
25°C	100%
0°C	85%
-15°C	65%

Self-Discharge (25°C)
3 month	Remaining Capacity: 91%
6 month	Remaining Capacity: 82%
12 month	Remaining Capacity: 65%

Nominal Operating Temperature	25°C ± 3°C(77°F ± 5°F)

Operating Temperature Range
Discharge	-15°C~50°C (5°F~122°F)
Charge	-10°C~50°C (14°F~122°F)
Storage	-20°C~50°C (-4°F~122°F)

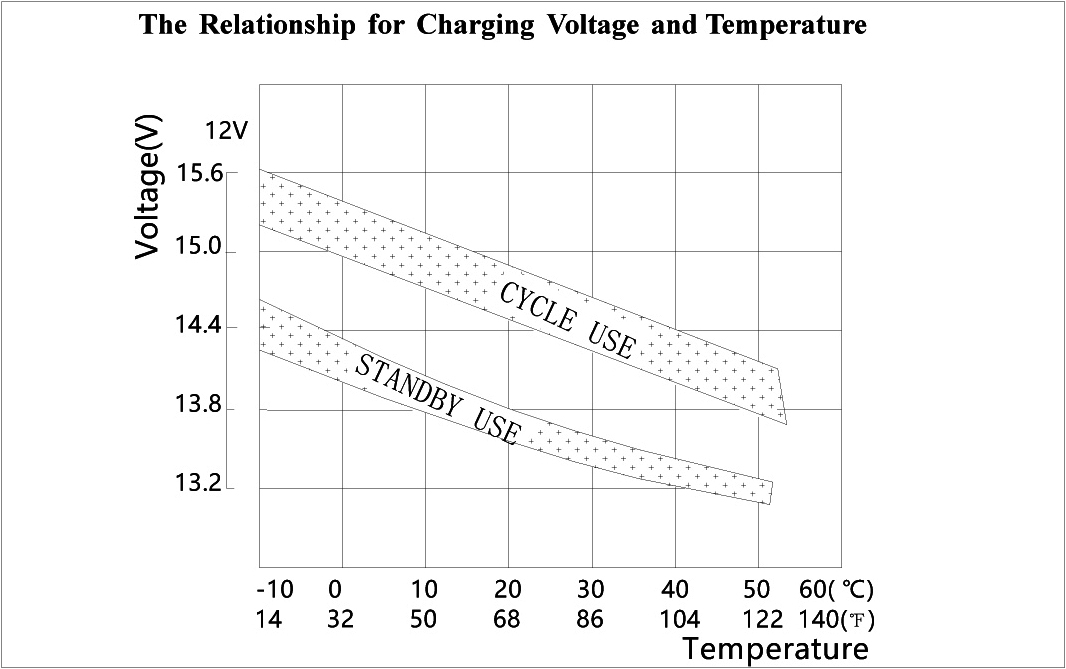

Float Charging Voltages (25°C)	13.60 to13.80V Temperature Compensation: -18V/°C

Cyclic Charging Voltage (25°C)	14.50 to 14.90V Temperature Compensation: -30mV/℃

Maximum Charging Current	1.35A

Terminal Material	Copper

Max. Discharge Current	67.5A (5 sec.)

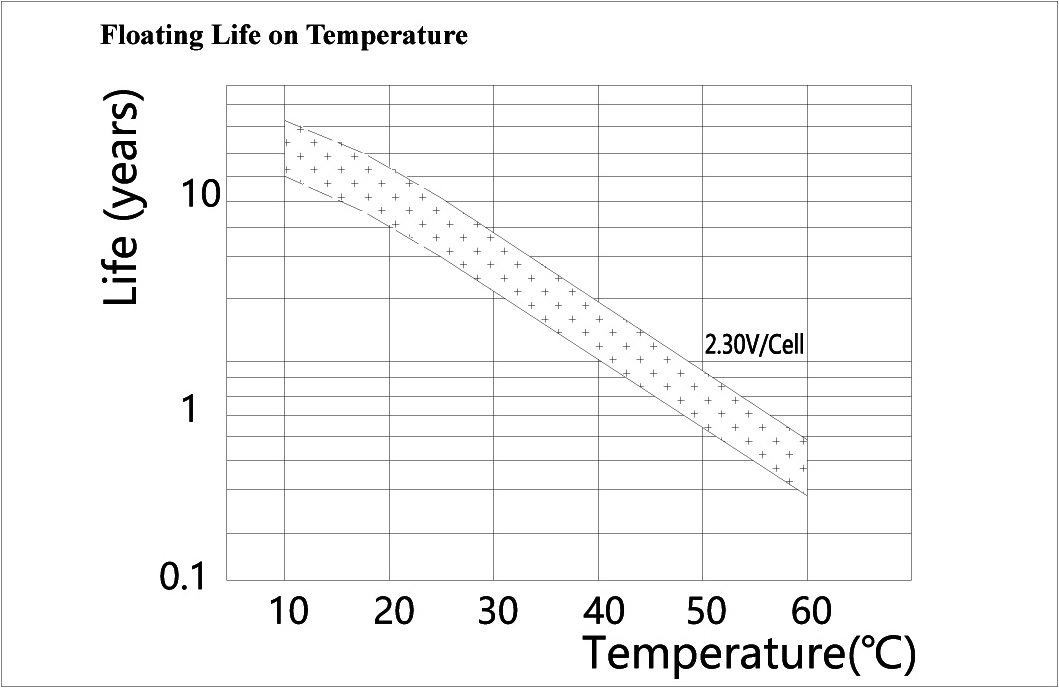

Designed Floating Life	10 years

Dimensions
