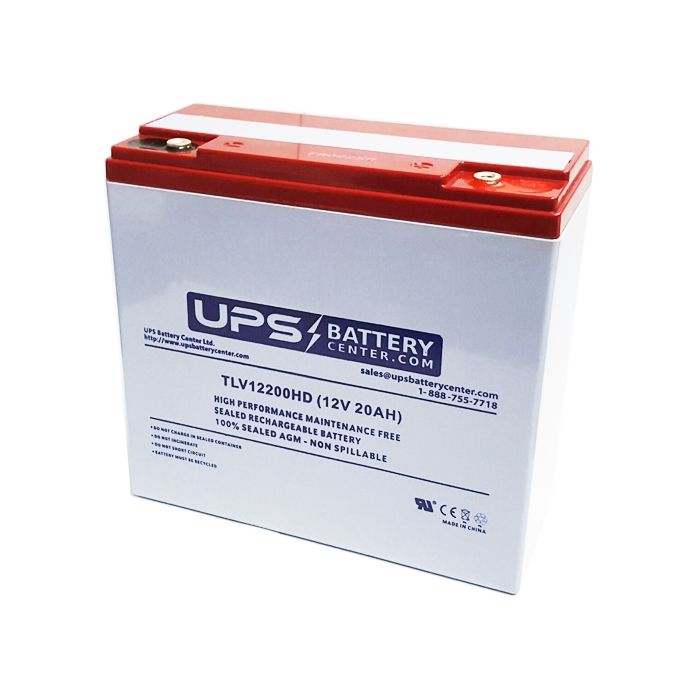

12V 20Ah Deep Cycle Sealed Lead Acid Battery with M5 Insert Terminals for Cyclic Applications

Features of the TLV12200HD - 12V 20Ah Deep Cycle Sealed Lead Acid Battery with M5 Insert Terminals

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density

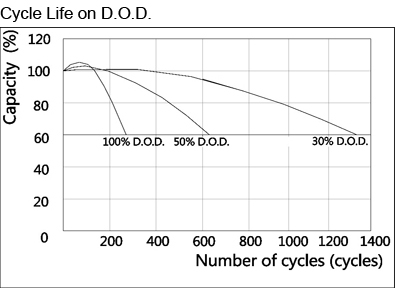

• Long service life in float or cyclic applications
• Maintenance-free operation
• Low self discharge

Applications

• Mobility applications, cyclic use
• Wheelchairs, electric scooters, mobility assistance devices
• Hospital intake carts, drug delivery carts
• Patient care carts
• Motorized loads
• Booster packs, portable flash packs, inverters

Product Specifications

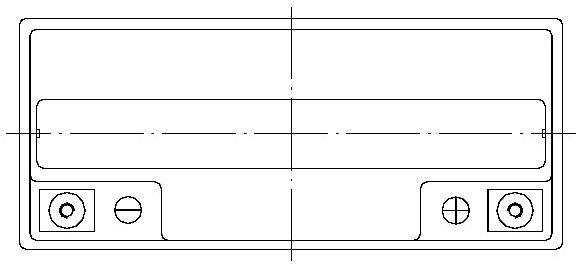

Dimensions

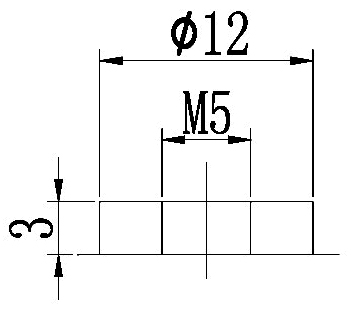

Terminal Type: M5

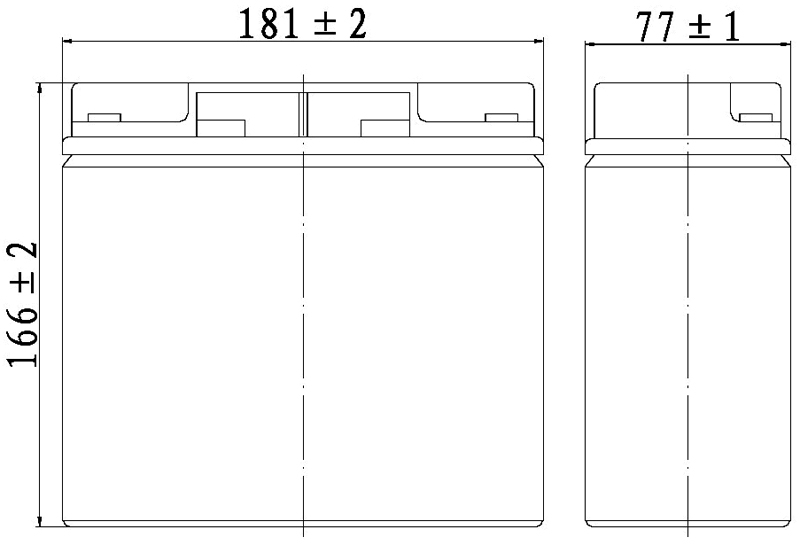

Length (mm/inch): 181/7.13
Width (mm/inch): 77/3.03
Height (mm/inch): 166/6.54
Total Height (mm/inch): 166/6.54
Approx. Weight (kg/lbs): 6.3/13.9

Performance Characteristics

Nominal Voltage: 12V

Nominal Capacity 77ºF (25ºC)
20HR (10.5V): 20Ah
10HR (10.5V): 18.6Ah
1HR (9.60V): 13.1Ah

Internal Resistance
Fully Charged battery 77ºF(25ºC): Approx. 10mΩ

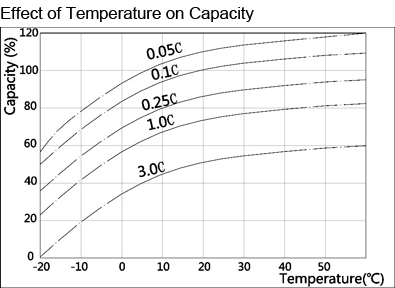

Capacity Affected by Temperature (20 Hour)
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 65%

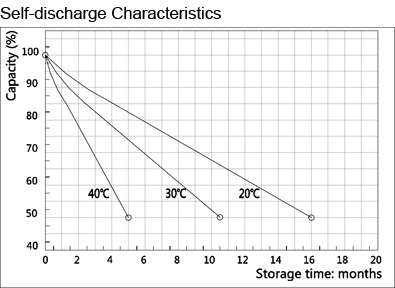

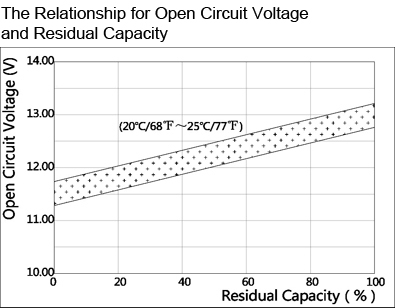

Self-Discharge (25°C)
3 Month: Remaining Capacity: 91%
6 Month: Remaining Capacity: 82%
12 Month: Remaining Capacity: 65%

Nominal Operating Temperature:
25°C±3°C (77°F±5°F)

Operating Temperature Range
Discharge: -15°C～50°C(5°F～122°F)
Charge: -10°C～50°C(14°F～122°F)
Storage: -20°C～50°C(-4°F～122°F)

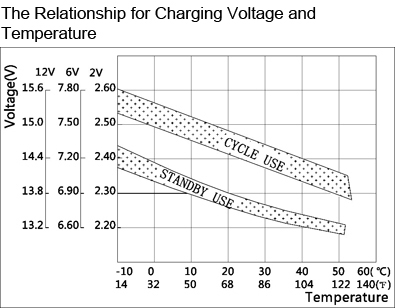

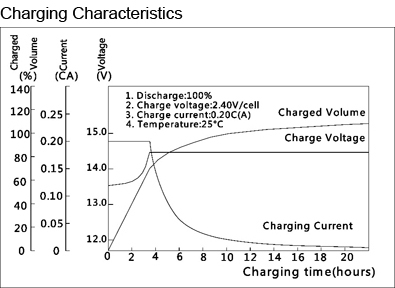

Float Charging Voltage (25°C):
13.60 to 13.80V Temperature compensation: -18mV/°C

Cyclic Charging Voltage (25°C):
14.50 to 14.90V Temperature compensation: -30mV/°C

Maximum Charging Current: 6.6A

Maximum Discharge Current: 330A (5 sec)

Terminal Material: Copper

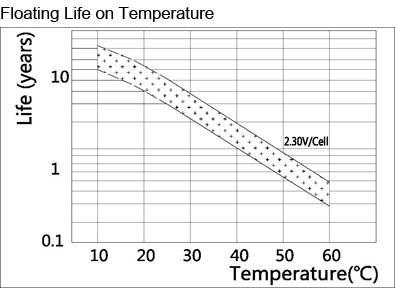

Designed Floating Life: 8-10 Years

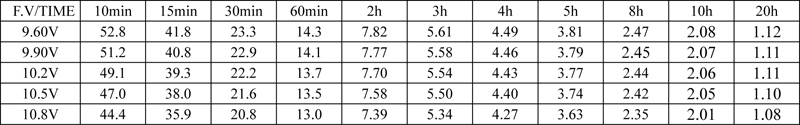

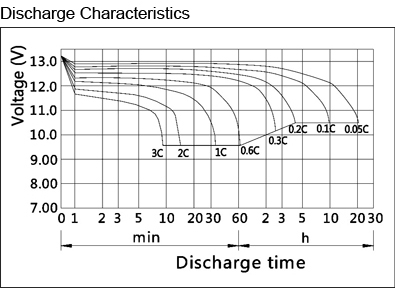

Constant Current Discharge Characteristics

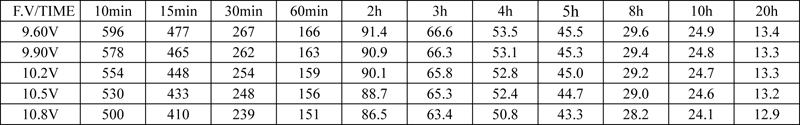

Constant Power Discharge Characteristics

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the mimimum values.
