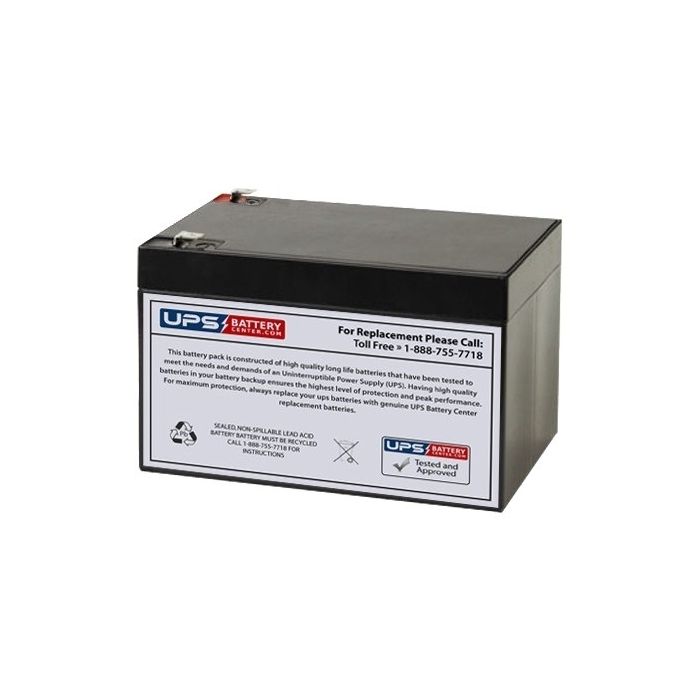

12V 15Ah Sealed Lead Acid Battery with F2 Terminals

Features of the TLV12150 - 12V 15Ah Battery with F2 Terminals

• Absorbent Glass Mat (AGM) - Not Spillable
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67
• UL-recognized component
• Can be mounted in any orientation
• Computer designed lead, calcium tin alloy grid for high power density
• Long service life in float or cyclic applications
• Maintenance-free
• Low self discharge

Applications

• UPS & standby power applications
• Medical devices
• Military power equipment
• Emergency lighting
• Fire detection and alarm devices

Product Specifications

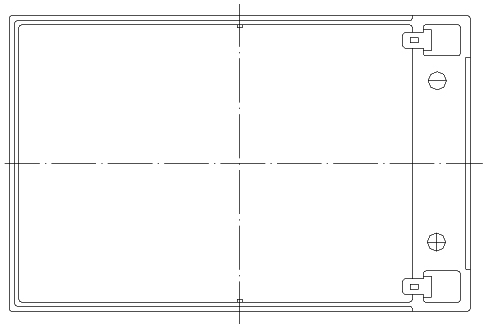

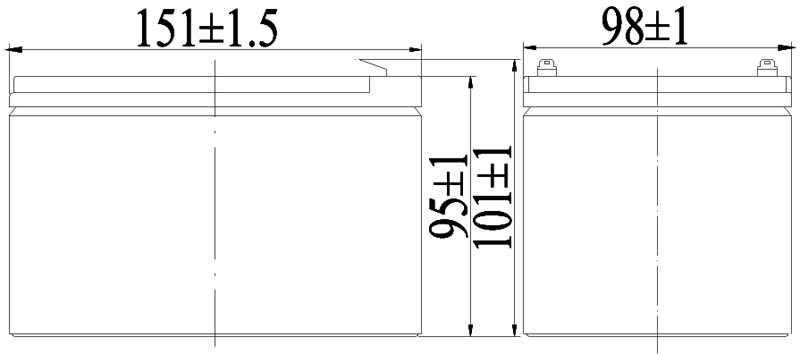

Dimensions

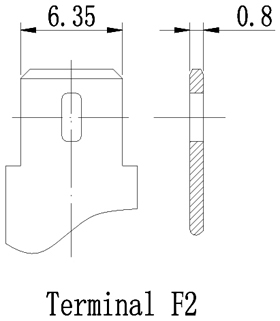

Terminal Type: F2
Length (mm/inch): 151mm / 5.94"
Width (mm/inch): 98mm / 3.86"
Height (mm/inch): 95mm / 3.74"
Total Height (mm/inch): 101mm / 3.98"
Approx. Weight (kg/lbs): 4.10kg / 9.04lbs

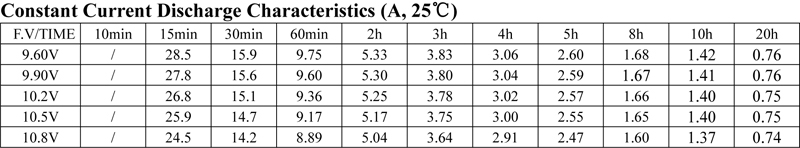

Performance Characteristics

Nominal Voltage: 12V

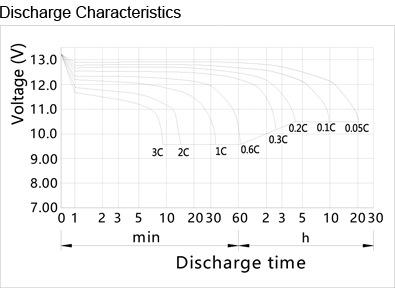

Nominal Capacity (25ºC)
20HR (10.5V): 15Ah
10HR (10.5V): 14Ah
1HR (9.60V): 9.75Ah

Internal Resistance (Fully charged, 25°C)
Approx. 12mΩ

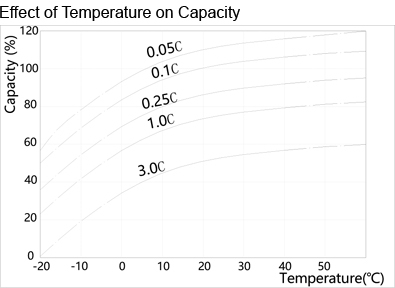

Capacity affected by temperature (20HR)
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 65%

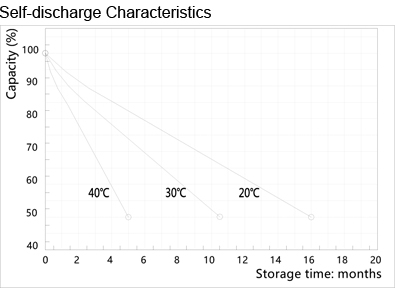

Self-Discharge (25°C)
3 Month - Remaining Capacity: 91%
6 Month - Remaining Capacity: 82%
12 Month - Remaining Capacity: 65%

Nominal Operating Temperature:
25°C±3°C (77°F±5°F)

Operating Temperature Range
Discharge: -15°C～50°C (-5°F～122°F)
Charge: 10°C～50°C (14°F～122°F)
Storage: -20°C～50°C (-4°F～122°F)

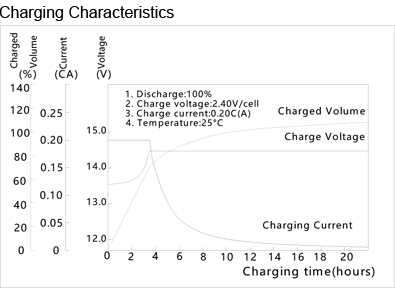

Float Charging Voltage (25°C):
13.60 to 13.80V Temperature compensation: -18mV/°C

Cyclic Charging Voltage (25°C):
14.50 to 14.90V Temperature compensation: -30mV/°C

Maximum Charging Current: 45A

Terminal Material: Copper

Maximum Discharge Current: 180A (5 sec)

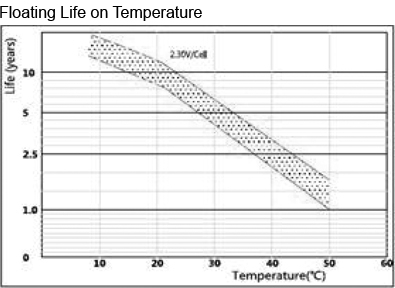

Designed Floating Life: 10 Years

(Note) The above characteristics data are average values obtained within three charge/discharge cycles not the minimum values.
