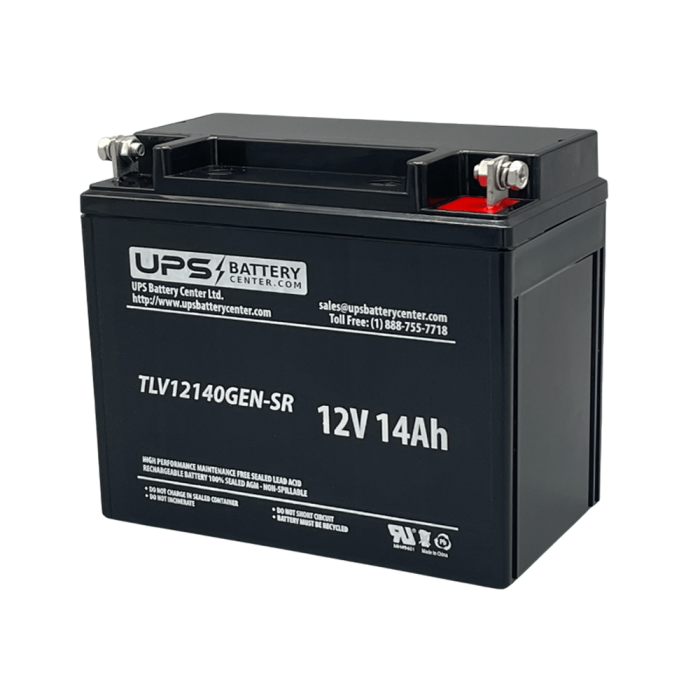

12V 14Ah Generator Sealed Lead Acid Battery with F3 Terminals - Right side positive

TLV12140GEN-SR - 12V 14Ah Sealed Lead Acid Battery for generators with F3 Nut & Bolt terminals

• Commonly used in portable generators
• Absorbent glass mat technology (AGM)
• Maintenance-free / Non-Spillable
• Highly efficient
• Low shelf-discharge
• Long cyclic life

Product Specifications

Dimensions

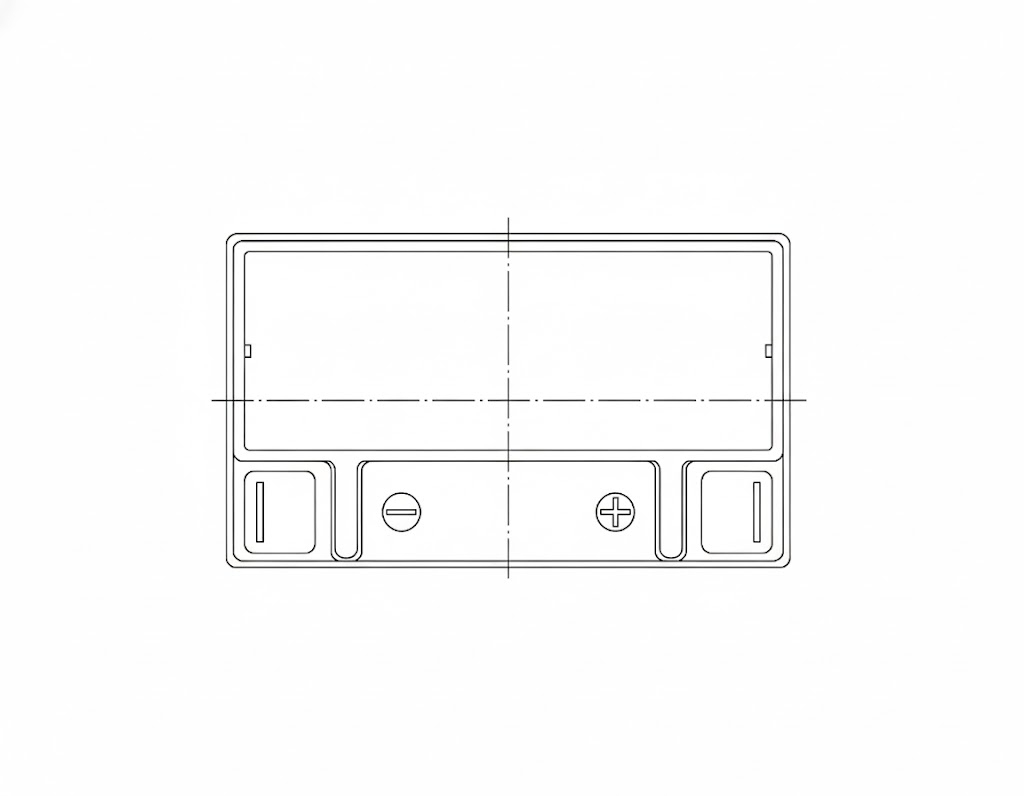

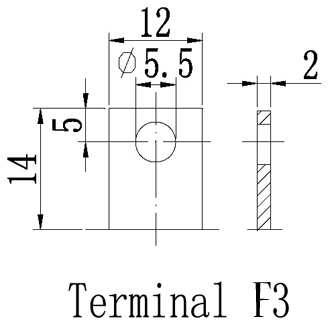

Terminal Type: F3 - Nut & Bolt (hardware included) - Positive Terminal on the right side
Length (mm/inch): 150mm / 5.91"
Width (mm/inch): 85mm / 3.35"
Height (mm/inch): 131mm / 5.16"
Approx. Weight (kg/lbs): 3.6kg / 7.93lbs

Performance Characteristics

Nominal Voltage: 12V
Nominal Capacity 77ºF (25ºC): 14Ah

Operating Temperature Range: -20°C~50°C(-4°F~122°F)

Standard Charging Method (25°C):
Current: 1.2A
Time: 5~13h

Quick Charging Method (25°C):
Current: 6A
Time: 102h

Terminal Material: Lead
Container Material: ABS
